Product Description

The ENGWE L16 is a compact step-through utility e-bike built around 16-inch × 4.0" fat tires. A 750W rated motor (1500W peak) with 75Nm of torque, a front suspension fork and hydraulic disc brakes make it easy to ride with heavy loads, while the low step-through frame suits riders from 4'0" to 6'0".

Choose the single-battery version (48V 18Ah, up to 70 miles in PAS mode) or the dual-battery version (48V 18Ah plus 48V 23Ah, up to 150 miles in PAS mode). Cast wheels and a hidden built-in battery keep maintenance to a minimum.

Dual-battery version: the bike and the second battery are shipped separately and may arrive on different days.

Specs +
General Info
Model L16
Max Load Capacity 120 kg (264 lbs)
Rider Height 4'0" - 6'0"
Max Speed 28 mph (actual speed varies with rider weight and road conditions)
Max Range Up to 70 miles (single battery) / up to 150 miles (dual battery), PAS mode
Waterproof Rating IPX4
Bike Weight Single battery 39.6 kg (87.3 lbs); dual battery 45.7 kg (100.8 lbs)
Frameset
Frame Material Steel, step-through
Suspension Front suspension fork
Wheel Set
Tires 16" × 4.0" fat tires
Wheels Cast wheels
E-Bike System
Motor 750W rated, 1500W peak
Max Torque 75Nm
Battery (single) 48V 18Ah lithium-ion
Battery (dual) 48V 18Ah plus 48V 23Ah lithium-ion
Charger 3A
Charging Time 6–7 hours

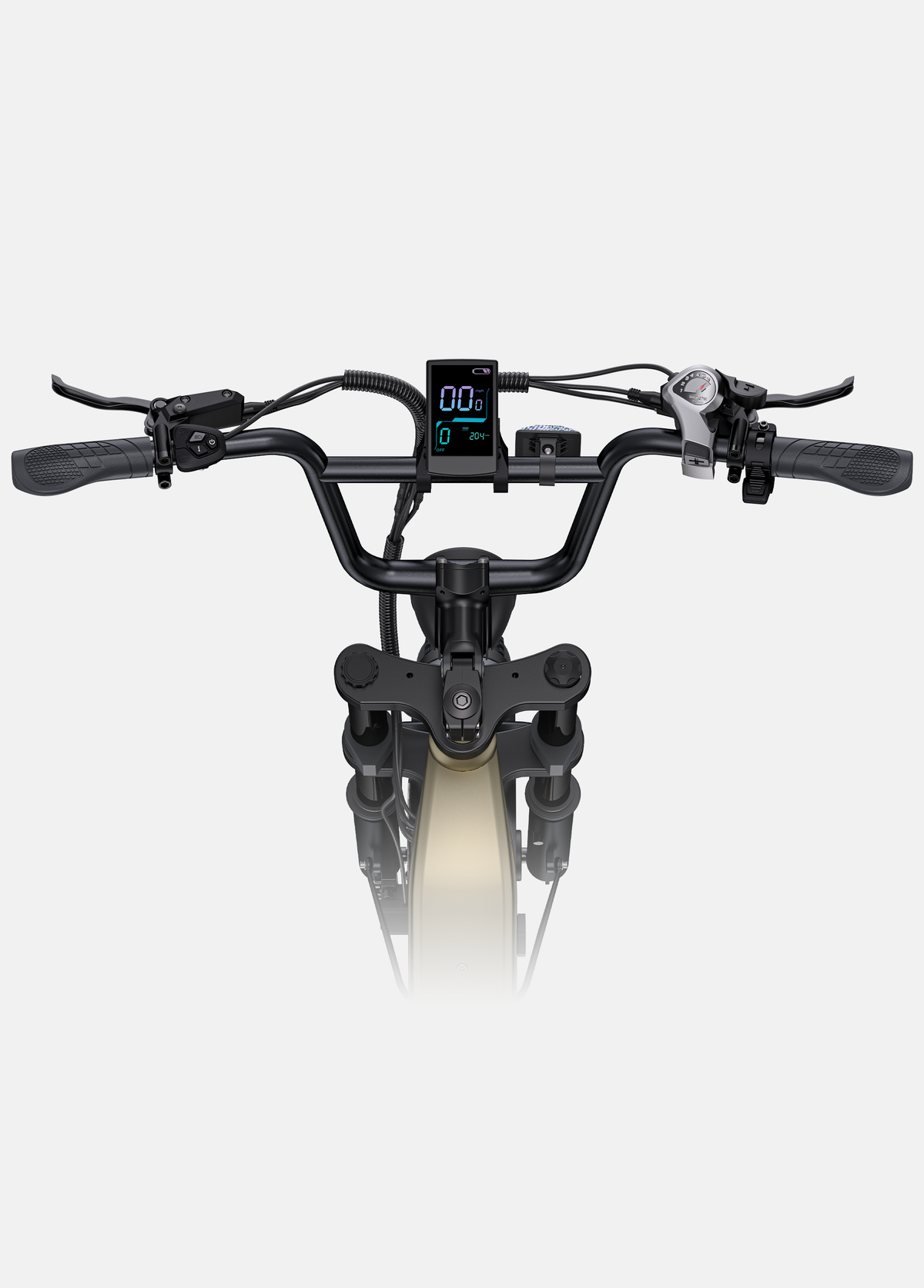

Display LCD
Brakes & Drivetrain
Brakes 160mm hydraulic disc brakes
Drivetrain Shimano 7-speed
What's in the Box? +
L16 E-Bike *1
Battery (single-battery version) 48V 18Ah lithium-ion *1
Batteries (dual-battery version) 48V 18Ah lithium-ion *1, 48V 23Ah lithium-ion *1
3A Battery Charger *1
Pedals *2
Front & Rear Fenders *1
Handlebars (shipped installed on the bike) *1
Assembly Tools *1
User Manual *1

Please note: The product you receive is based on the option you selected to order.

Size +
Rider Height 4'0" - 6'0"
Payload Capacity 120 kg (264 lbs)
A - Total Length 63.4 in
B - Wheelbase 42.7 in
C - Standover Height 14.9 in
D - Handlebar Height 43.3 in
E - Seat Height 33.8 in

Please note: There may be a difference of 0~5 cm between measured and actual data.

Warranty
12-month warranty on the motor, battery, controller and frame; 6 months on lights, braking components and electric accelerator; and 3 months on paint, decorative trim and foot pad. Other accessory quality issues must be reported within 7 days of receipt. Please contact support@harborandhedge.com for the full warranty policy for this product.

ENGWE L16

The 16-Inch Fat Tire Utility E-Bike
