Product Description

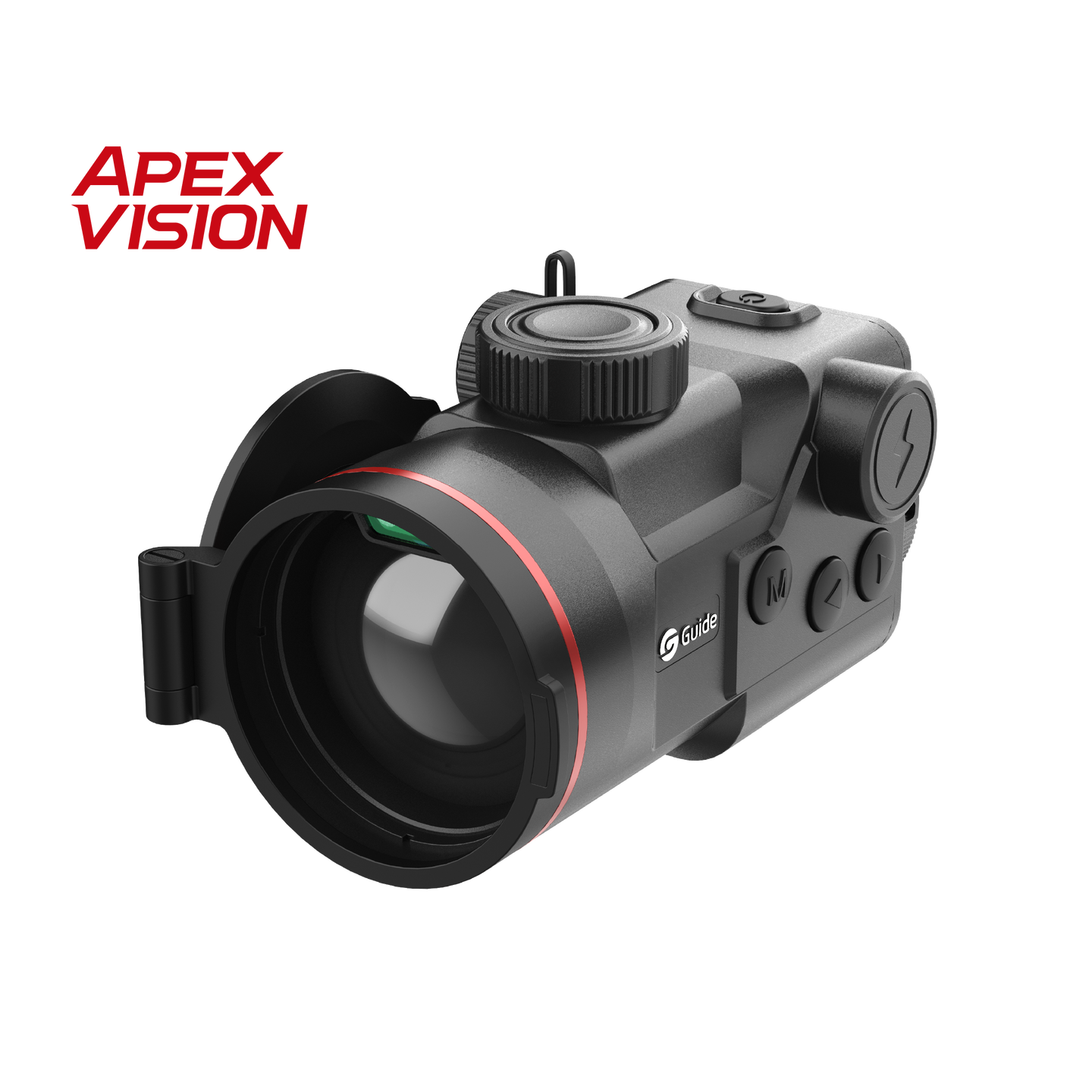

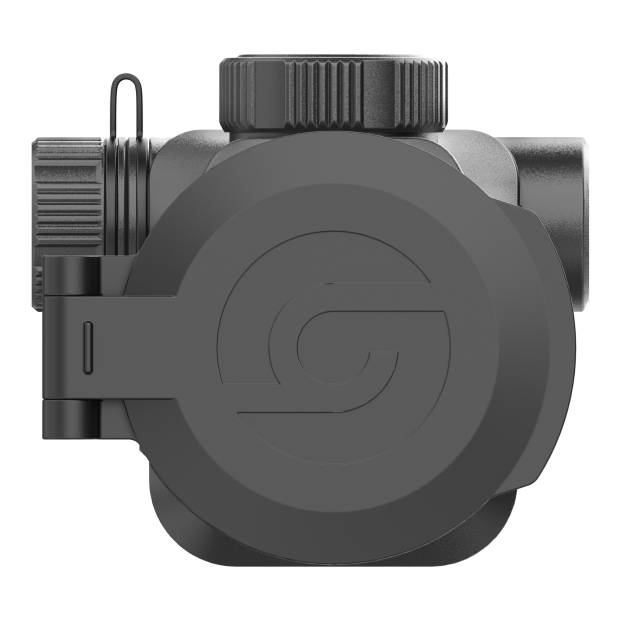

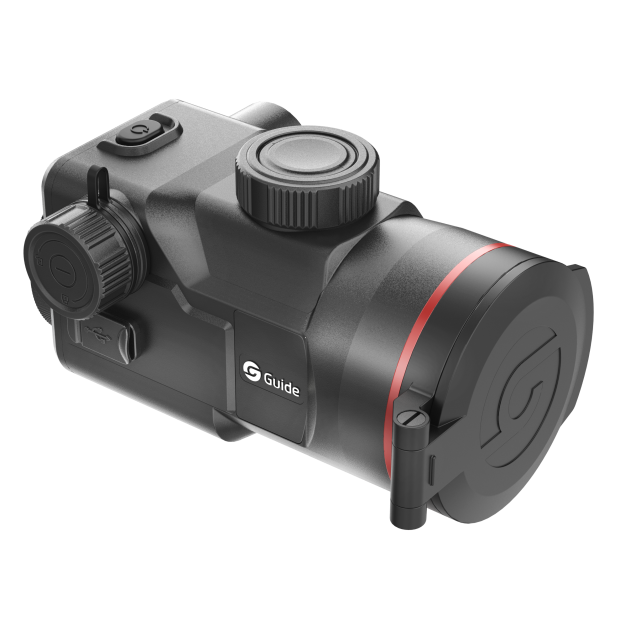

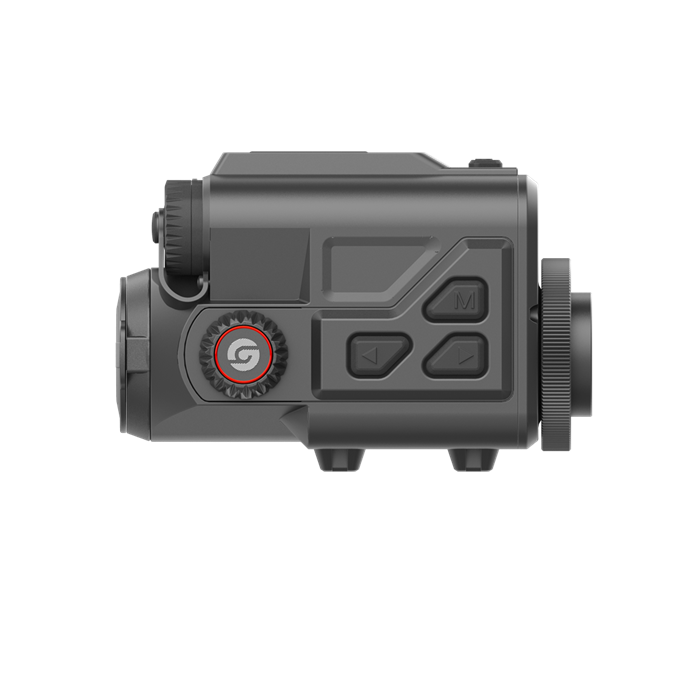

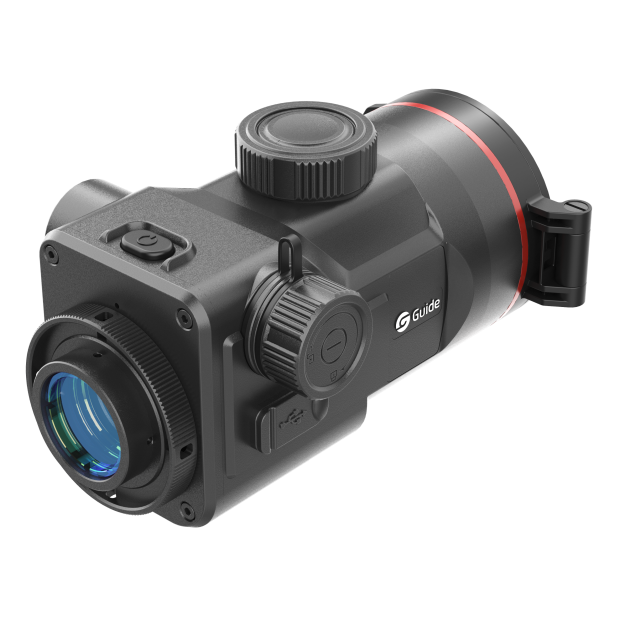

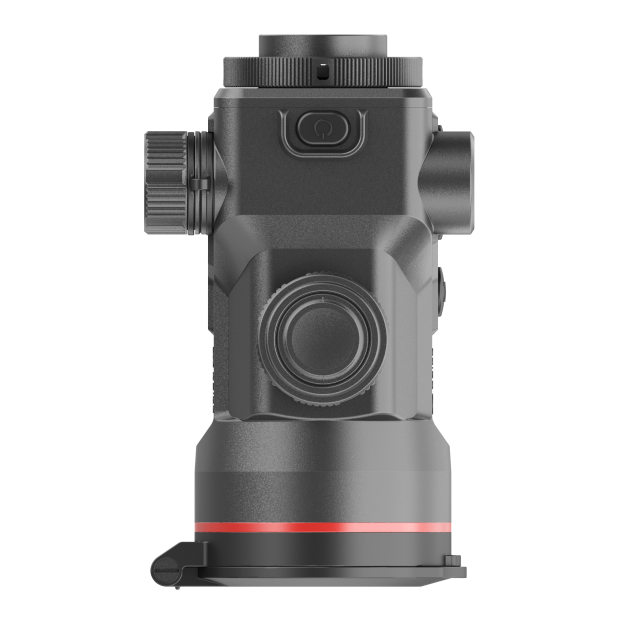

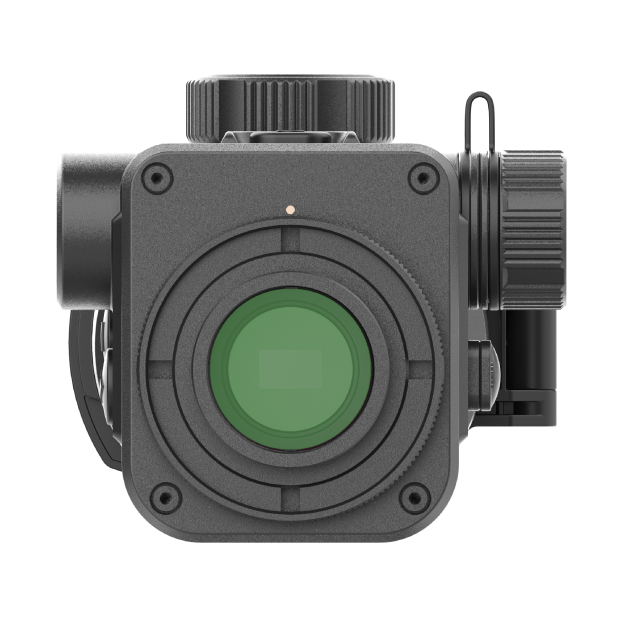

The TB1260LS is a clip-on thermal imaging attachment designed for outdoor and low-light thermal observation. It features a 1280×1024 @ 12μm infrared detector, 15mK NETD thermal sensitivity, 60mm F1.0 objective lens, and a 0.5" AMOLED 1600×1200 display.

This model includes an in-lens laser rangefinder, manual focus, photo and video recording with audio, dual-band Wi-Fi, Bluetooth, USB-C interface, 64GB memory, and replaceable 18650 batteries with up to 6 hours of operating time.

KEY FEATURE

  • 1280×1024 @ 12μm sensor resolution
  • 15mK NETD thermal sensitivity
  • 50Hz sensor frame rate
  • 60mm, F1.0 objective lens
  • 14.6° × 11.0° field of view
  • 25 × 19 m field of view at 100m
  • 1x magnification
  • 3200m / 3500yd detection range
  • 1200m / 1300yd laser rangefinder
  • Manual focus
  • 0.5" AMOLED 1600×1200 display
  • White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia color palettes
  • USB-C power supply / USB2.0 interface
  • Wi-Fi 2.4G and 5G
  • Microphone and Bluetooth
  • Photo and video recording with audio
  • 64GB memory capacity
  • Replaceable 18650 ×2 battery
  • Up to 6 hours operating time
  • IP68 protection rating
  • 6000J shock rating

PRODUCT DETAILS

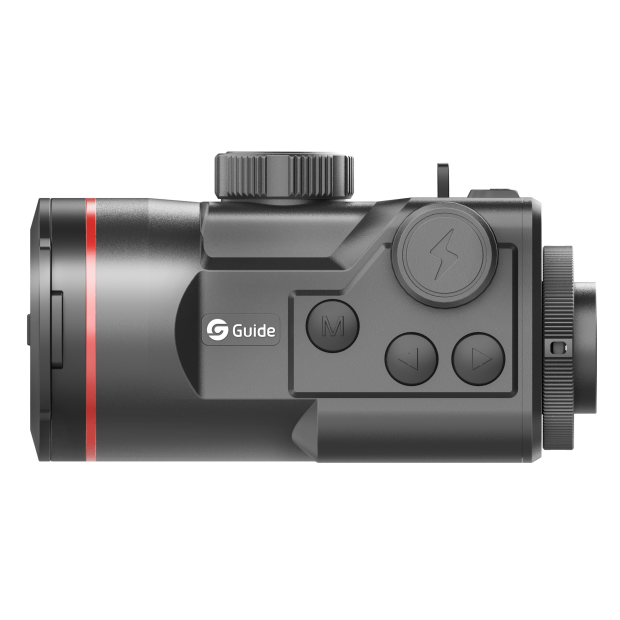

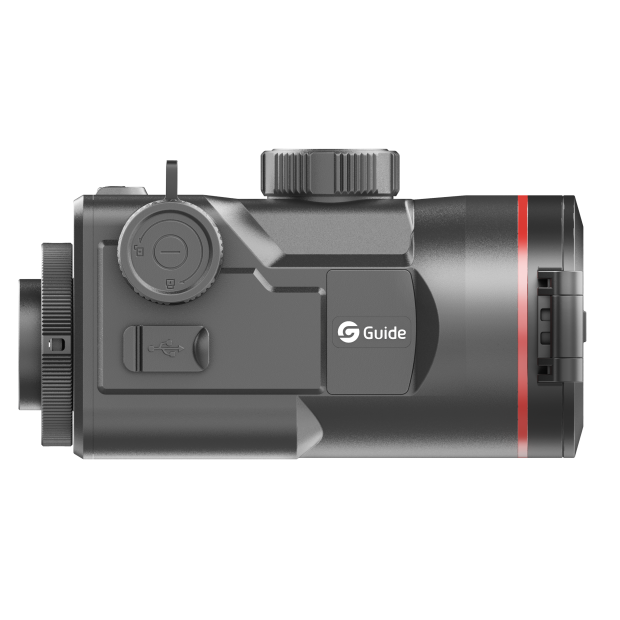

Product Name: TB1260LS Clip-on Thermal Imaging Attachment
Brand: Guide Outdoor
Vendor: Guide USA
Product Type: Thermal Clip-On
Dimensions: 162 × 97 × 102mm / 6.38" × 3.82" × 4.02"
Use: Thermal image viewing for outdoor and low-light observation

TB1260LS Thermal Clip-On Banner

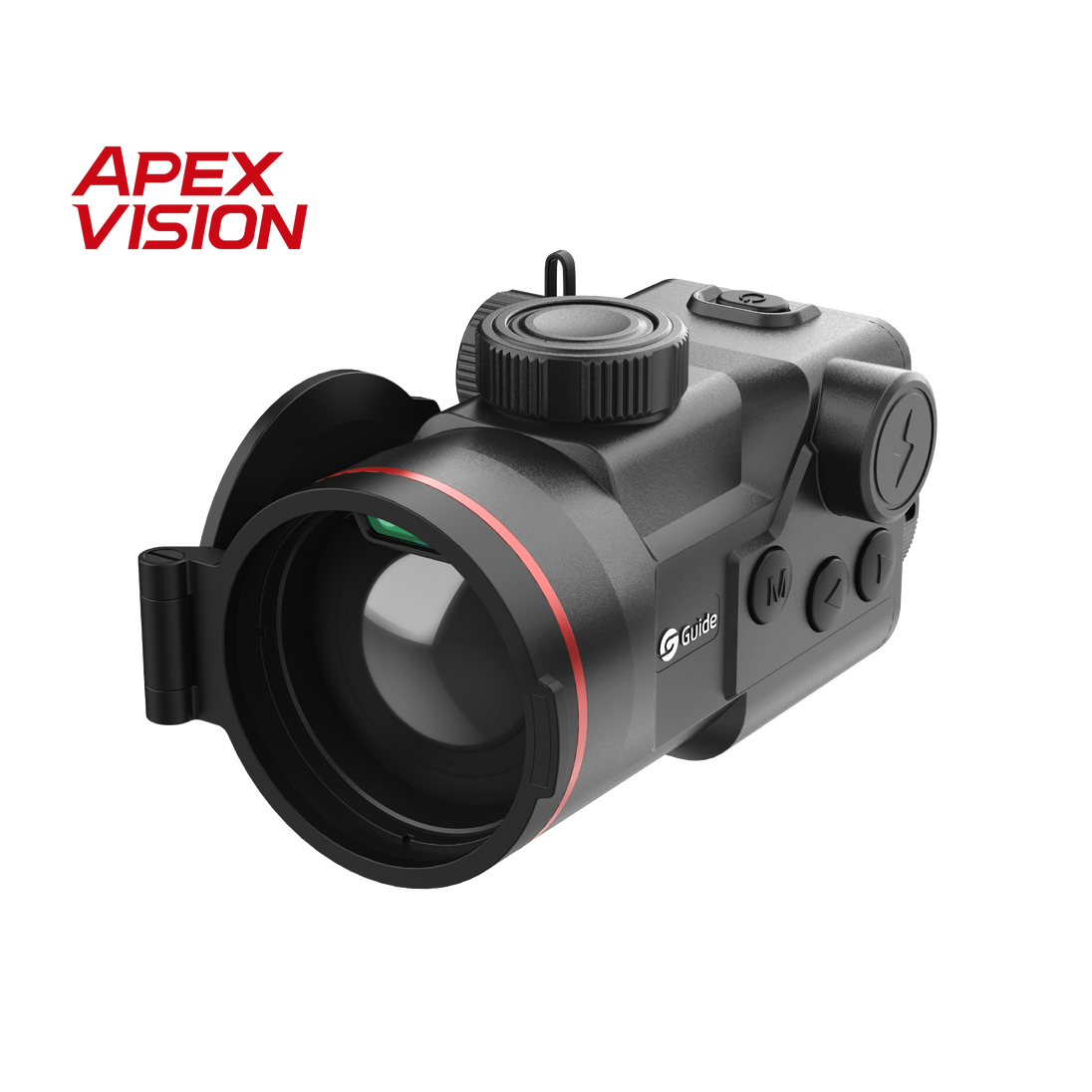

Complete ApexVision S1 System Architecture

Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.

Complete ApexVision S1 System Architecture

Zero Shutter True Shutterless

G-Zero Shutterless Design brings a true zero-shutter experience during startup, eliminating image freezing that could cause missed targets or critical moments while aiming. It also reduces shutter calibration noise, ensuring silent, uninterrupted operation.

Zero Shutter True Shutterless

Hyper-Light Algorithm Smarter Clarity

The AI powered Hyper-light algorithm, paired with a high-sensitivity thermal detector, delivers top-tier clarity with fine details, reduced noise, and optimized contrast for long-range observation.

Hyper-Light Algorithm Smarter Clarity

Standard 18650 Extended Runtime

For user convenience, the TB 2.0 Series uses a standard battery that’s easy to purchase, replace, and recharge. Each battery lasts up to 5 hours and is compatible with other Guide devices. The low-power design reduces power consumption, ensuring extended runtime for full hunting sessions.

Standard 18650 Extended Runtime

Ultra-Precise Zeroing 15x Optics Ready

The TB 2.0 Series offers superior zeroing accuracy with ultra-precise 1.22 cm@100 m click adjustments. Compatible with daylight optics up to 15x magnification, it delivers exceptional shot-to-shot precision.

Ultra-Precise Zeroing 15x Optics Ready
Technical Parameters
Model TB1260LS
Sensor
Core Technology Item Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 1280×1024@12μm
NETD 15mK
Frame rate 50Hz
Lens
Objective lens 60mm, F1.0
Field of view 14.6°×11.0°
FOV m@100m 25×19
Magnification 1x
Detection range 3200m/3500yd
Focus Manual
Display
Display type 0.5" AMOLED 1600×1200
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm
Hardware
Laser rangefinder 1200m/1300yd
WIFI 2.4G, 5G
Interface USB-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type Replaceable 18650 ×2 Battery
Operating time 6 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 6000J
Encapsulation IP68
Physical
Weight (g/oz) 740/26.10
Size (mm/in) 162×97×102 / 6.38×3.82×4.02
Standard Device, Carry Bag, Accessory Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, Adapter Ring, 18650 Battery
