Product Description

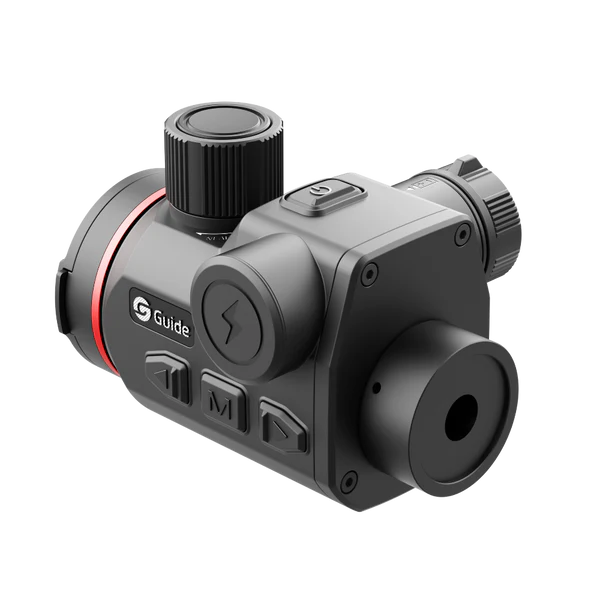

The Orion 0435CS is a thermal clip-on device designed for outdoor and low-light thermal observation. It features a 400×300 @ 12μm sensor, 15mK NETD thermal sensitivity, 35mm F0.9 objective lens, and a 0.39" AMOLED 1024×768 display.

This model also supports handheld monocular mode and includes manual focus, multiple thermal color palettes, USB-C power supply, and a replaceable 18500 battery with up to 8 hours of operating time.

KEY FEATURE

  • 400×300 @ 12μm sensor resolution
  • 15mK NETD thermal sensitivity
  • 50Hz sensor frame rate
  • 35mm, F0.9 objective lens
  • 7.9° × 5.9° field of view
  • 1x magnification
  • 1950 yd detection range
  • Manual focus
  • 0.39" AMOLED 1024×768 display
  • White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia color palettes
  • USB-C power supply interface
  • Single replaceable 18500 battery
  • Up to 8 hours operating time
  • IP67 protection rating
  • 6000J shock rating
  • Handheld monocular mode
  • 10.05 oz weight

PRODUCT DETAILS

Product Name: Orion O435CS Thermal Clip-On 400x300 35mm 15mK
Brand: Guide Thermal USA
Vendor: Guide USA
Product Type: Thermal Clip-On
Dimensions: 3.90" × 2.87" × 2.67"
Use: Thermal image viewing for outdoor and low-light observation; clip-on and handheld monocular mode


Description
Sensor
Core technology Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 15mK
Frame rate 50Hz
Lens
Objective lens 35mm, F0.9
Field of view 7.9°×5.9°
FOV m@100m 13×10
Magnification 1x
Detection range 1800m/1950yd
Focus Manual
Display
Display type 0.39" AMOLED 1024×768
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20 mm
Hardware
Interface USB-C (Power supply)
Power
Battery type Single, Replaceable 18500 Battery
Operating time 8 hours
Environmental
Operating temp. -4°F to +122°F
Shock 6000J
Encapsulation IP67
Physical
Weight
(oz)
10.05
Size (in) 3.90×2.87×2.67
Standard Device, Carry Bag, Accessory Bag, Lint-Free Cloth, Battery Charger, 18500 Battery ×2, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Adapter Ring, 18500 Battery
Apex Vision Orion
Hyper-Light Orion
Large Screen Orion
Lightest Clip-On Orion

Versatile 2-in-1 Design

Transform your Orion clip-on into a handheld thermal monocular with the screen zoom feature. Enjoy a comfortable viewing experience with this 2-in-1 thermal optic, perfect for both hunting and surveillance. The 0.39-inch AMOLED display delivers crisp, vivid thermal images while reducing eye strain—even during extended nighttime observation.

AI-Powered Visual Clarity

Experience next-level thermal imaging with the Hyper-Light 2.0 AI algorithm. This advanced technology enhances:
Contrast & brightness for sharper details, Target highlighting for quick identification, Tone balance for natural, high-definition imaging

Ultra-Light & Compact

Every ounces counts when you’re in the field. The Orion C is engineered for extreme weight and size optimization, making it one of the lightest 400×300 thermal clip-ons available at 10 ounces. Its compact design reduces setup weight, improves balance, and ensures a more comfortable, stable hunting experience.

Ultra-Low Power Consumption

Hunt all night long with optimized power efficiency. A single 18500 battery provides up to 7 hours of runtime, while two batteries easily last through an entire night of hunting. No more worrying about power—just focus on your hunt.

Built for Real Hunting Conditions

The Orion C is built tough to handle the demands of real-world hunting:
Recoil-resistant up to 6000 J – Stays stable even under heavy recoil, IP67 waterproof rating – Reliable performance in rain, fog, and harsh environments, No matter the conditions, the Orion C delivers stability and reliability when it matters most.

10-Year Warranty – Your Peace of Mind

We stand behind our products with an industry-leading 10-year warranty. If you ever encounter an issue, we’re here to support you. Your satisfaction and confidence are our top priorities.





User Manual - TE Series

Access your full user manual here
